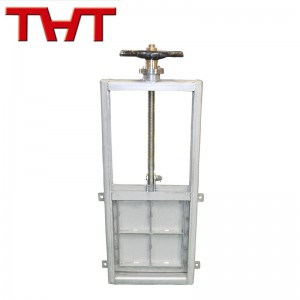

400*400 SS316 wall type penstock valve/sluice gate valve Manufacture
This valve are mainly used in sewage treatment plants, waterplants, drainage and irrigation, environmental protection,
electricity, channel and other projects to cut off, regulate flow, and control water levels. Can be divided into four types
1. channel type, used in the middle of the channel, three-way sealing
2.Wall type:used in inlet and outlet of wall for open or close,four way seal
3.Adjusting type: for adjusting the size of the water flow
4. Weir type:for adjusting water level. The sluice gate valve is
corrosion resistant, has good sealing performance, long life and easy maintenance.
corrosion resistant, has good sealing performance, long life and easy maintenance.
Pressure&Material
| Working Pressure | 0.1Mpa |
| Working Temperature | 0 ~80°C |
| Suitable Media | Water,sewage,seawater etc |
| Body Material | SS316 |
| Gate Material | SS316 |
| Shaft Material | SS316 |
| Sealing Material | EPDM |
| Bolts&Nuts | SS316 |
Specification
| Size | DN100-DN4000 |
| Pressure | 0.05Mpa/0.1Mpa/0.15Mpa/0.25Mpa |
| Design standard | ISO10631/JB/T8692 |
| Test standard | GB/T13927/ API598/ISO5208 |
| Type | Channel type/wall type |
| Temperature | ≤80℃ |
| Actuator | Manual/electric/penufactic |
| Standard | Customer require |
| Medium | Water, sewage,sea water,acid media |
| MOQ | 1Set |
Suitable materials
| Body | Carbon steel/SS/cast iron/ duplex steel |
| Gate | Carbon steel/SS/cast iron/duplex steel |
| Shaft | SS304/SS316/2cr13 |
| Sealing | EPDM/brass |
| Sealing | Stainless steel |
