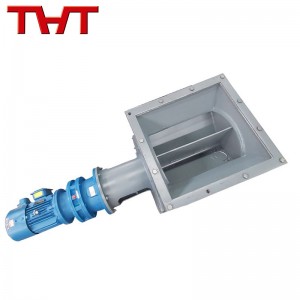

carbon steel star type discharging valve
carbon steel star type discharging valve
As a special unloading equipment, star type discharging valve plays an important role in cleaning and cleaning. The star type discharging valve is composed of rotor impeller with several blades, shell, reducer and seal. It is mainly installed in the ash hopper of dust remover, and can also be widely used in the unloading device of feeding and unloading system in chemical industry, metallurgy, mining, machinery, electric power, grain and other industries.
The utility model has the advantages of simple structure, easy operation, stable operation, low power consumption, low noise and long service life.
|
Performance specification
|
||||
|
Connection
|
Round flange, square flange
|
|||
|
Working Temperature
|
≤200°C
|
|||
|
Suitable Media
|
Dust, small particle material
|
|||
|
No. |
Part |
Material |
|
1 |
Body |
Carbon steel |
|
2 |
Stem |
SS420 (2Cr13) |
|
3 |
Disc |
Carbon steel |
