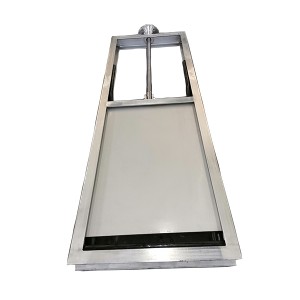

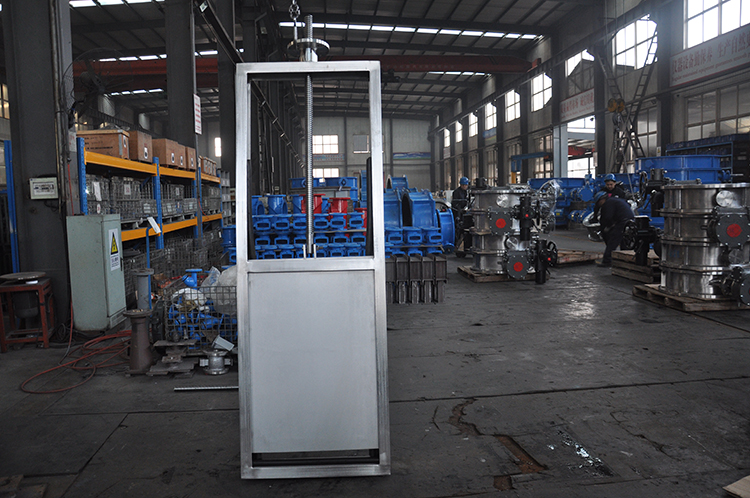

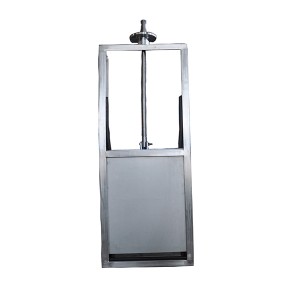

channel type stainless steel sluice gate valve factory price
This valve are mainly used in sewage treatment plants, waterplants, drainage and irrigation, environmental protection, electricity, channel and other projects to cut off, regulate flow, and control water levels. The sluice gate valve is corrosion resistant, has good sealing performance, long life and easy maintenance.
Can be divided into four types
1. channel type, used in the middle of the channel, three-way sealing
2.Wall type:used in inlet and outlet of wall for open or close,four way seal
3.Adjusting type: for adjusting the size of the water flow
4. Weir type:for adjusting water level.
Overview:
Port Size | DN100-DN4000 |
Type: | Channel type/wall type |
Main material: | Carbon steel/SS/cast steel/super duplex alloys |
Seal material | EPDM/NBR/brass/bronze |
Medium | Water, sewage,sea water,acid media |
Temperature: | ≤80℃ |
Working head | head pressure≤10m-H2O,back pressre≤2m-H2O |
MOQ | 1set |
Actuator: | Manual/electric/penufactic |
Standard | Customer require |
Pressure and Temperature ratings
working pressure | 0.1Mpa |
strength test | 0.15Mpa |
working temperature | 0 ~80°C. |
suiteble media | gas/flue gas/dust flue gas etc |

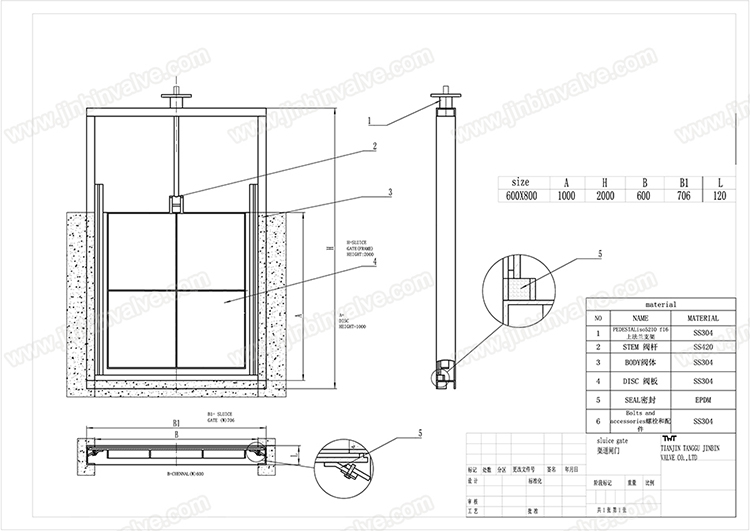

Materials:
part | material |
body | SS304 |
Gate | SS304 |
Seat | EPDM |
Shaft | SS420 |
bolts&nuts | SS304 |
