Factory Promotional Pneumatic Actuator Ball Valve - Motorized double eccentric Butterfly valve – Jinbin Valve Detail:

Metal seat Double Eccentric Flange Butterfly valve

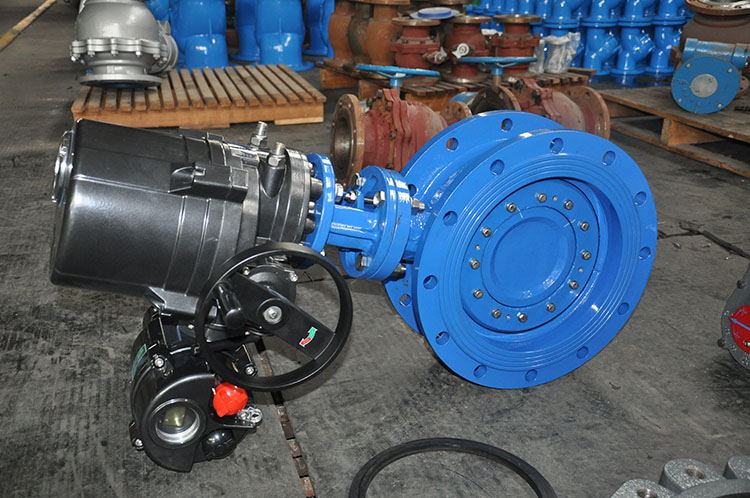

Motorized Butterfly valve

Size: DN 100 – DN2800

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155.

Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E.

Wormgear, electric, pneumatic operated.

Test: API 598.

Motorized Butterfly valve

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 250°C

Suitable Media

Water, Oil and gas.

Motorized Butterfly valve

Parts

Materials

Body

Ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Sealing ring

EPDM / NBR/ PTFE

Stem

Stainless steel

Bushing

PTFE




The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

Motorized Butterfly valve

2
