China rising stem flanged knife gate valve Manufacturer and Supplier

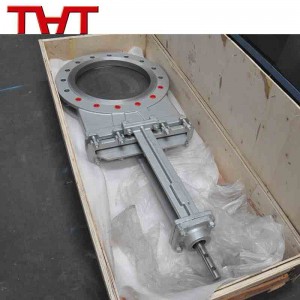

rising stem flanged knife gate valve

Short Description:

rising stem flanged knife gate valve Design Features Design & Manufacture: API 602 Size Range :2″ to 42″ N. B. Pressure Classes :ANSI 150, PN6, PN10, PN16 End Connections : Flanged & WAFER Materials (Standard) Standard Constructions Steel:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem...

FOB Price: US $10 - 9,999 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

Product Tags

rising stem flanged knife gate valve

Design Features Design & Manufacture: API 602 Size Range :2″ to 42″ N. B. Pressure Classes :ANSI 150, PN6, PN10, PN16 End Connections : Flanged & WAFER Materials (Standard) Standard Constructions Steel:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Manufacturing to NACE MR-01-75 on request. Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions. OperationManual, Electric, Hydrau-Pneumatic Actuator Standards ComplianceMSS SP-81Face to Face Dimension: MSS SP-81 Pre-temperature Rating: ANSI B16.34 Flanged Dimension: ANSI B16.5, DIN2533 Inspect & Test: API 598 Quality Assurance Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes

Design Features
Design & Manufacture: API 602
Size Range :2″ to 42″ N. B.
Pressure Classes :ANSI 150, PN6, PN10, PN16
End Connections : Flanged & WAFER
Materials (Standard)
Standard Constructions Steel:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite.
Manufacturing to NACE MR-01-75 on request. Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions.
OperationManual, Electric, Hydrau-Pneumatic Actuator
Standards ComplianceMSS SP-81Face to Face Dimension: MSS SP-81 Pre-temperature Rating: ANSI B16.34 Flanged Dimension: ANSI B16.5, DIN2533 Inspect & Test: API 598
Quality Assurance Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes
