Phau ntawv stainless hlau phab ntsa mounted penstock sluice rooj vag valve chaw tsim tshuaj paus

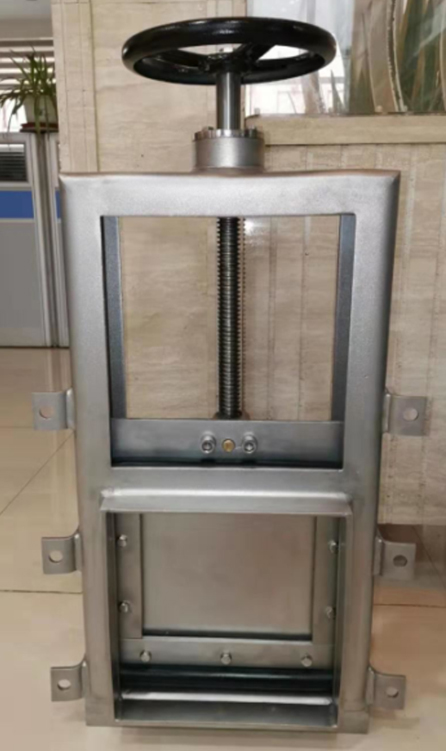

Los ntawm txhais tes stainless hlau penstock sluice rooj vag valve

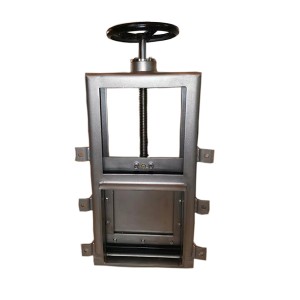

handwheel phab ntsa hom penstock valve
Lub valve no tsuas yog siv rau hauv cov chaw kho dej phwj tuaj, cov nroj tsuag dej, cov kav dej thiab cov kav dej, kev tiv thaiv ib puag ncig, hluav taws xob, channel thiab lwm yam haujlwm los txiav tawm, tswj kev ntws, thiab tswj cov qib dej.Lub sluice gate valve yog corrosion resistant, muaj kev sib khi zoo, lub neej ntev thiab kev saib xyuas yooj yim.
1. channel hom, siv nyob rau hauv nruab nrab ntawm lub channel, peb-txoj kev sealing
2. Phab ntsa hom: siv nyob rau hauv inlet thiab qhov hluav taws xob ntawm phab ntsa rau qhib los yog kaw, plaub txoj kev foob
3. Kho hom: kho qhov loj ntawm cov dej ntws
4. Weir hom: rau kev kho dej theem.
Txheej txheem cej luam
| Chaw nres nkoj Loj | DN100-DN4000 |
| Hom: | Channel hom / phab ntsa hom |
| Cov khoom tseem ceeb: | Carbon steel / SS / cam khwb cia hlau / super duplex alloys |
| Cov khoom siv foob | EPDM / NBR / tooj dag / tooj liab |
| Nruab nrab | Dej, dej phwj tuaj, dej hiav txwv, acid media |
| Kub: | ≤80 ℃ |
| Lub taub hau ua haujlwm | Lub taub hau siab ≤10m-H2O, rov qab pressre≤2m-H2O |
| MOQ | 1set ib |
| Actuator: | Phau ntawv / hluav taws xob / penufactic |
| Txuj | Cov neeg siv khoom xav tau |
Kev ntsuas kub thiab ntsuas kub
| ua hauj lwm siab | 0.1Mpa |
| kuaj lub zog | 0.15 Mpa |
| ua haujlwm kub | 0 ~ 80 ° C. |
| tsim nyog media | gas / flue gas / plua plav flue gas thiab lwm yam |
Khoom siv
| ib feem | khoom |
| lub cev | SIB 304 |
| Rooj vag | SIB 304 |
| Rooj | EPDM |
| Ncej | SIB 420 |
| bolts & ceev | SIB 304 |
