Short Description:

Single flanged Butterfly Valve Size: DN 600 – DN1000 Design standard: API 609, BS EN 593, MSS SP-67. Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67. Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K. Test: API 598. Working Pressure PN10 / PN16 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) ...


WhatsApp

Product Detail

Product Tags

Related Video

Feedback (2)

We strive for excellence, service the customers", hopes to become the best cooperation team and dominator enterprise for personnel, suppliers and customers, realizes value share and continuous promotion for Water Strainer , Sluice Gate Factory , Channel Mounted Penstock Gate Valve , Adhering to the business philosophy of 'customer first, forge ahead', we sincerely welcome clients from at home and abroad to cooperate with us give you best service!
Lowest Price for Cast Iron Check Valve - Single flanged wafer butterfly valve – Jinbin Valve Detail:

Single flanged Butterfly Valve

Single flanged wafer butterfly valve

Size: DN 600 – DN1000

Design standard: API 609, BS EN 593, MSS SP-67.

Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.

Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K.

Test: API 598.

Single flanged wafer butterfly valve

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

Single flanged wafer butterfly valve

Parts

Materials

Body

Cast iron, ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Techniacl data:Single flanged wafer butterfly valve

Single flanged wafer butterfly valveSingle flanged wafer butterfly valveSingle flanged wafer butterfly valve
Single flanged wafer butterfly valve

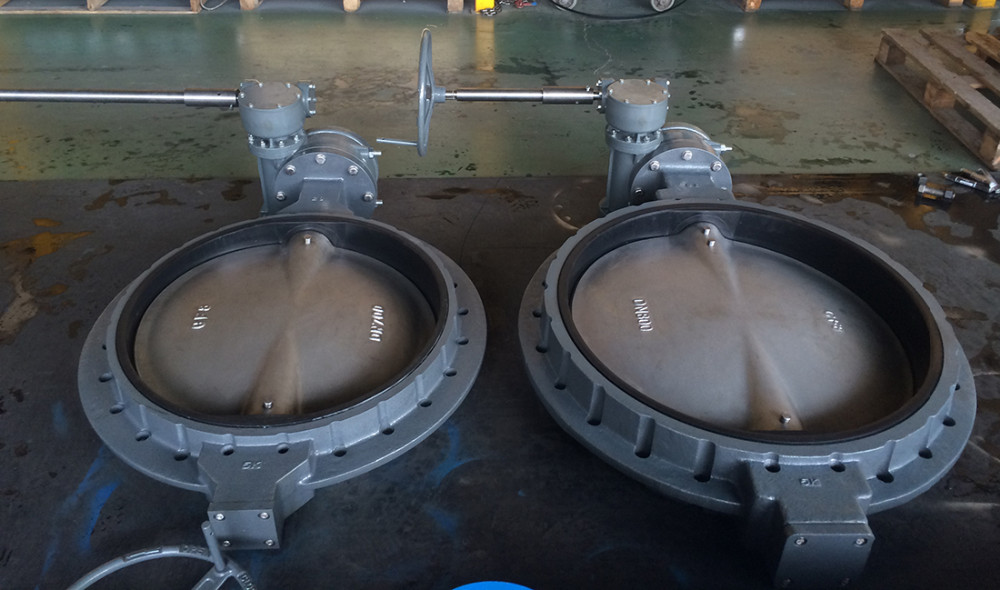

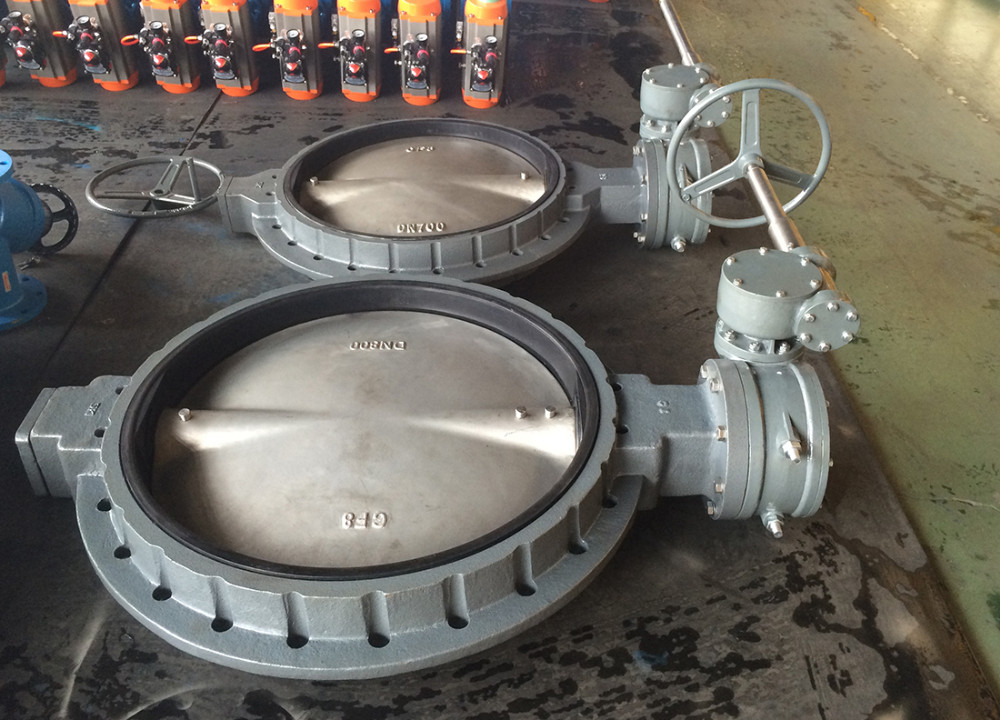

Product detail pictures:

Lowest Price for Cast Iron Check Valve - Single flanged wafer butterfly valve – Jinbin Valve detail pictures
