Lug type double disc swing check valve(forging body)

Lug type double disc swing check valve(forging body) Featured Image
  • Lug type double disc swing check valve(forging body)

Short Description:

Lug type double disc swing check valve On various pipelines with working temperature of – 196 ~ 540 ℃, it is used to prevent medium backflow. By selecting different materials, it can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium, urea and other media. Suitable size DN15 – DN1200 Working pressure PN1.0MPa～42.0MPa 、Class150～2500 temp. -196～540℃ Suitable medium water, oil, gas Connection ANSI 150LB No Name Material 1 Body WCB、...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • WhatsApp

    Product Detail

    Product Tags

    Lug type double disc swing check valve

    On various pipelines with working temperature of – 196 ~ 540 ℃, it is used to prevent medium backflow. By selecting different materials, it can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium, urea and other media.

    Suitable size DN15 – DN1200
    Working pressure PN1.0MPa～42.0MPa 、Class150～2500
    temp. -196～540℃
    Suitable medium water, oil, gas
    Connection ANSI 150LB

    No Name Material
    1 Body WCB、A105、WC6、WC9、LCB、F11、F22、F304、F316
    2 Disc WCB、A105、WC6、WC9、LCB、F11、F22、F304、F316
    3 Spring 304、304L、316 、316L、Inconel600、
    4 Seat 13Cr、STL、NBR、EPDM、

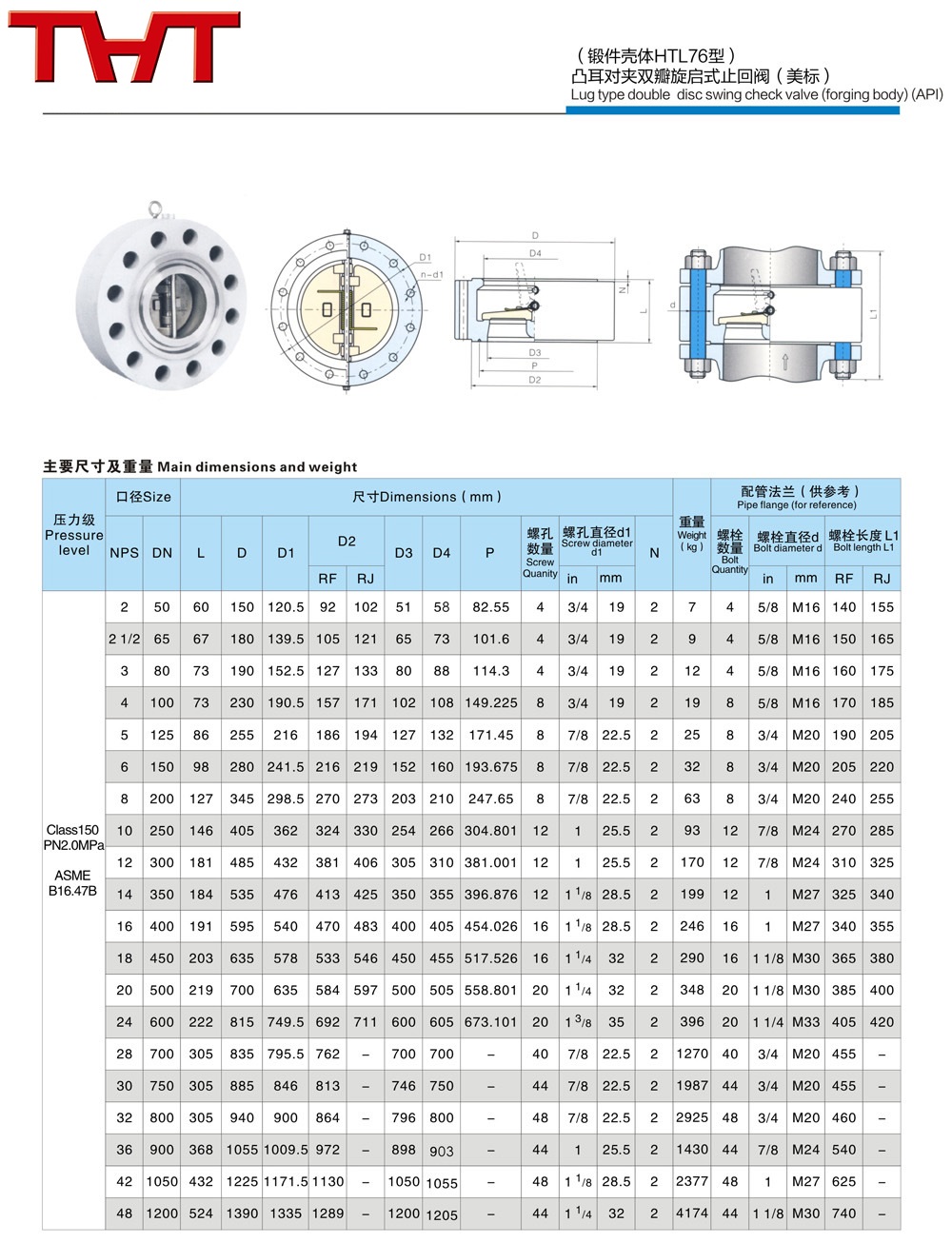

    Lug type swing check valve (2)

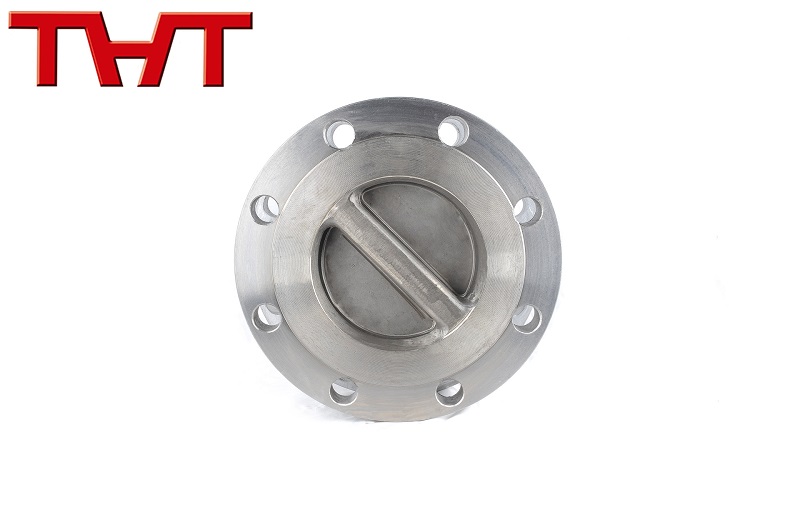

    Lug type swing check valve (3)

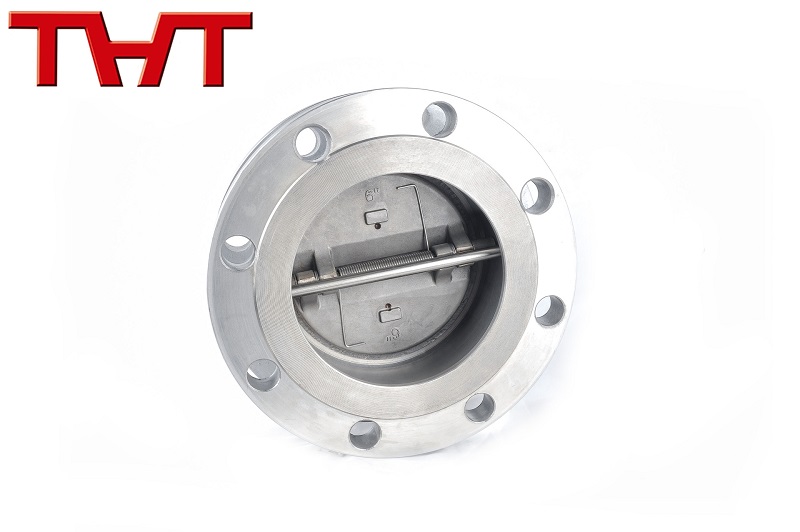

    Lug type swing check valve (4)
