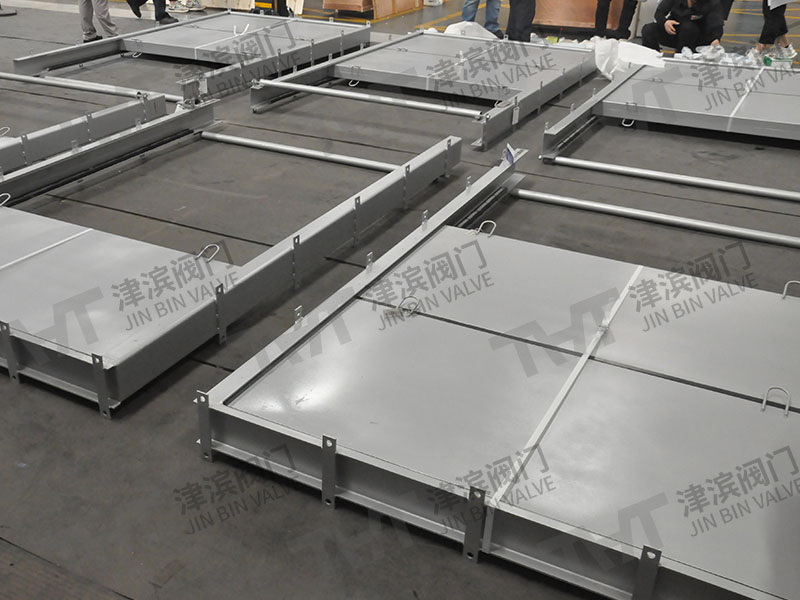

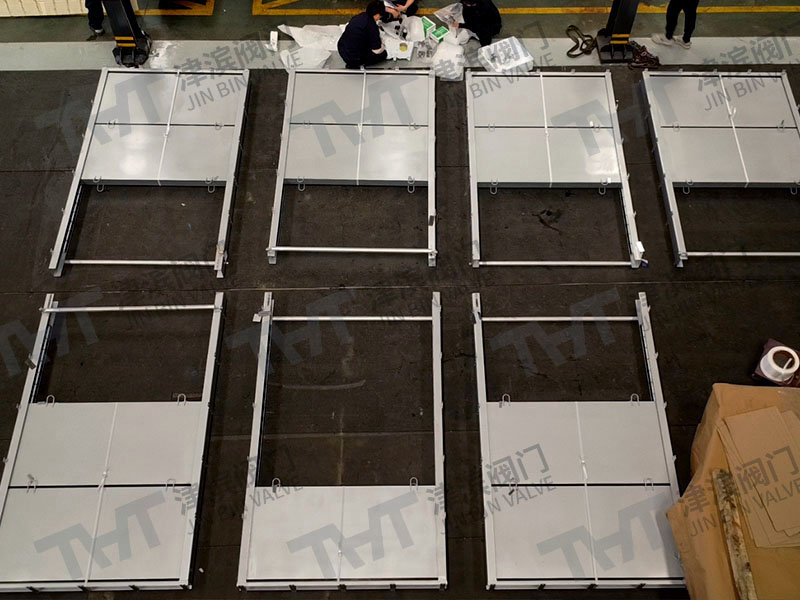

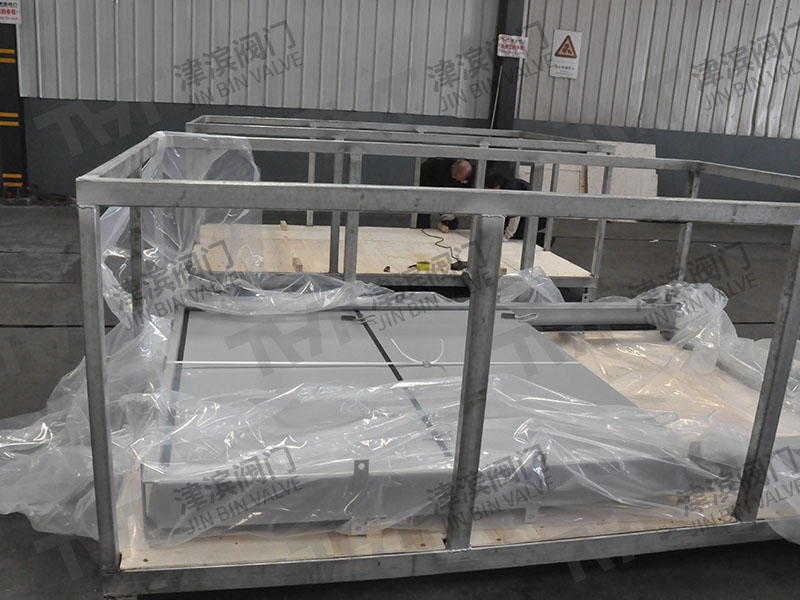

Recently, the Jinbin factory completed a production task for stop log sluice valve. After strict testing, it has now been packaged and is about to be shipped for transportation.

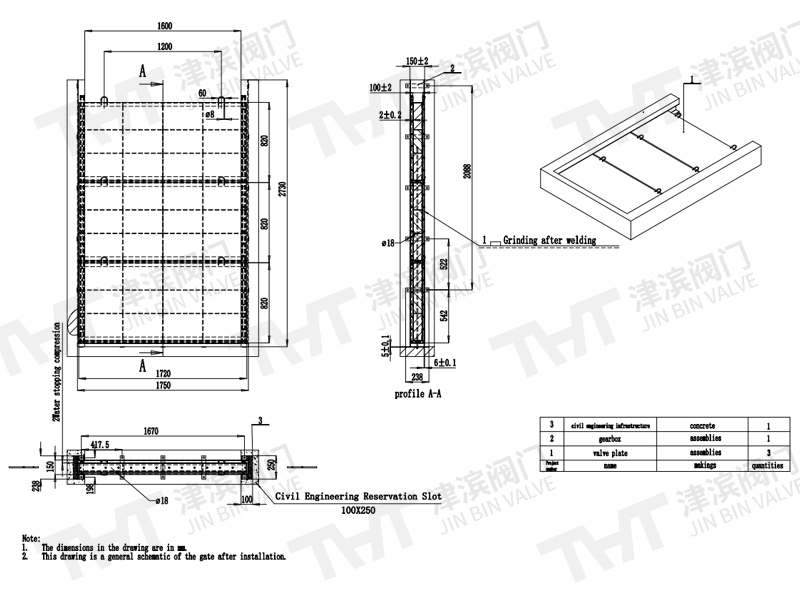

Stop log sluice gate valve is a hydraulic engineering facility that uses multiple individual gate disc, which are horizontally inserted into the gate slot and stacked together to form a flat water retaining structure. During operation, the gate is manually or mechanically inserted or removed block by block to control the water flow. Each gate disc usually has protrusions and grooves, as well as embedded waterproof rubber strips, which can ensure the sealing performance when multiple water gate disc are stacked. The lifting of the stop log can be achieved through hydraulic lifting mechanism or electric lifting mechanism, which can be operated by the control system to adapt to different water level and flow requirements.

So, what are the advantages of stop log gates?

1.Simple structure: The design of the laminated beam gate is simple, easy to install and maintain.

2.Light weight and low lifting force: Due to the materials and design used, the self weight of the laminated beam gate is relatively light, and the force required for lifting is also small.

3.Convenient handling: The lightweight nature of the laminated beam gate makes handling and operation relatively easy.

4.Reliable sealing: Although the overall sealing performance of laminated beam gates may be slightly inferior to steel gates, the use of rubber waterstops and pre tensioning devices can significantly improve the sealing effect and reduce leakage.

5.Suitable for temporary water blocking or maintenance: Stacked beam gates are suitable for situations with low frequency of use, such as temporary water blocking or use as maintenance sluice gate.

6.Long service life: The laminated beam gate is lightweight and not easily deformed, and can maintain good waterproof effect even after long-term idle use.

The advantages of stop log gates have made them widely used in hydraulic engineering, especially in situations where flexible control of water flow and ease of maintenance are required. Jinbin Valve penstock manufacturers is committed to producing high-quality valves. If you have any valve requirements, please leave a message below and you will receive a reply within 24 hours.
