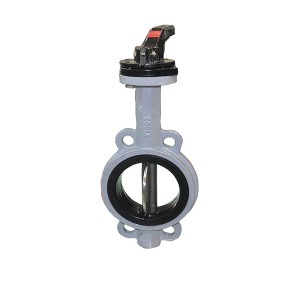

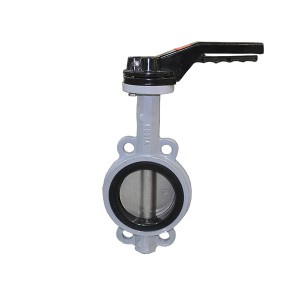

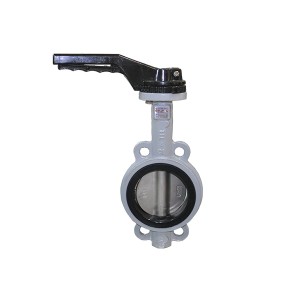

wafer nooca ductile iron balanbaalisooyin
wafer nooca ductile iron balanbaalisooyin
Cabbirka: DN50-800
Heerka naqshadeynta: API 609, BS EN 593.
Cabbirka wejiga-ka- waji: API 609, BS EN558.
Qodista Flange: ANSI B 16.1, BS EN 1092-2 PN 10 / PN 16.
Imtixaan: API 598.
| Cadaadiska Shaqada | 10 bar / 16 bar/150lb |
| Cadaadiska Imtixaanka | Shell: cadaadiska lagu qiimeeyay 1.5 jeer, Kursiga: 1.1 jeer ayaa lagu qiimeeyay cadaadiska. |
| Heerkulka shaqada | -10°C ilaa 120°C (EPDM) -10°C ilaa 150°C (PTFE) |
| Warbaahinta Ku Haboon | Biyo, Saliid iyo Gaas. |
| Qaybaha | Qalabka |
| Jirka | birta tuur |
| Saxanka | birta aan-dhalatada lahayn |
| Kursiga | EPDM / NBR / VITON / PTFE |
| Jirrid | birta aan-dhalatada lahayn |
| Bushing | PTFE |
| "O" giraanta | PTFE |
| Pin | birta aan-dhalatada lahayn |
| Furaha | birta aan-dhalatada lahayn |
Walalka balanbaalista waxaa inta badan loo adeegsadaa warbaahinta dambaska gypsum, sulfur dioxide, koollada slurry lime, habka biyaha iyo iwm.
