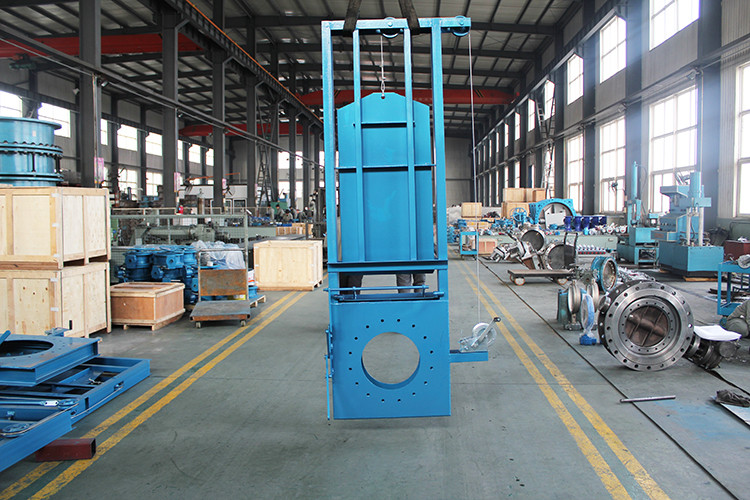

Windlass type sluice damper
Windlass type sluice damper
The main material of the valve is carbon steel or stainless steel (can be made according to user’s requirements). The sealing ring adopts rubber soft sealing. It has the functions of light weight, flexible operation, anti-corrosion, non-rusting, convenient installation and maintenance, reliable sealing and so on.
1. Materials: Carbon steel, stainless steel;
2. Different size from 200x200mm to 3000x3000mm;
3. There is manual, electric and pneumatic actuators.
It is suitable for dusty situation and widely used in metalurgy and chemical industries.
| Norminal Pressure | 0.05 Mpa | 0.1 Mpa | 0.05 Mpa | 0.25 Mpa |
| Sealing Test Pressure | 0.055 Mpa | 0.11 Mpa | 0.165 Mpa | 0.275 Mpa |
| Shell Test Pressure | 0.075 Mpa | 0.15 Mpa | 0.225 Mpa | 0.375 Mpa |
| Oil Test | 4-6 Mpa | |||
| Sealing Materials | NBR | Silicon Rubber | VITON | Metal seat |
| Suitable Temperature | -20 – 100°C | -20 – 200°C | -200 – 300°C | -20 – 450°C |
| Suitable Media | Air, coal gas, dusty gas etc. | |||
Note: It can be desinged as customer’s requirment. Please contact for the specificed drawing and dimension.
